The Podoscope is a professional plantar pressure analysis device designed for precise foot posture assessment in clinical, physiotherapy, and orthopedic settings. Now available across the UAE, you can buy this advanced podoscope at Health Mart UAE for reliable, real-time foot diagnostics.
Whether you need a foot scanner device for flat feet, high arches, or general foot care, this podoscope machine delivers accurate results for both adults and children.

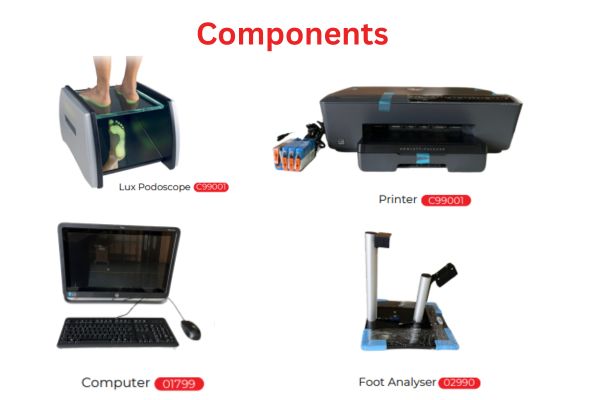

Components
- Lux Podoscope C99001
- Foot Analyser 02990
- Computer 01799
- Printer C99001
Technical Specifications
Feature |
Details |
Frame Material |
Birch wood, black painted |
Surface |
Tempered glass |
Illumination |
White LED lights |
Max Capacity |
200 kg |

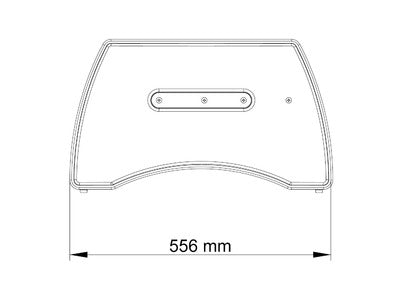

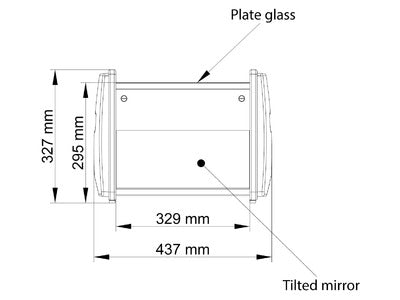

Dimensions |
46 x 55 x 33 cm |
Surface Area |
32.5 x 36 cm |
Weight |
15 kg |
Power Supply |
50/60Hz 0.25 A |
Secondary Power |
12 Vdc 1.25 A |
Plug Type |
Schuko (other types available) |
What It’s For
The LUX Podoscope is designed to visually assess plantar pressure distribution and foot posture. It’s widely used in:
-
Postural assessments
-

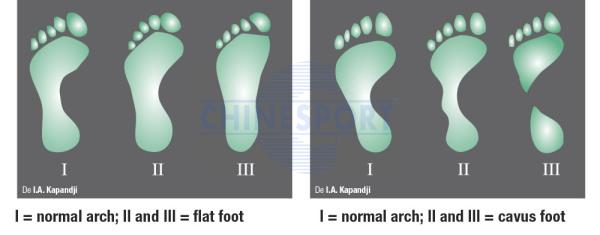

Flat foot diagnosis (pes planus)
-
High arch detection (pes cavus)
-
Custom orthotic prescription
-
Monitoring foot alignment pre/post-treatment
-
Gait and weight-bearing assessments
Whether you are a healthcare professional or part of a rehabilitation clinic, this tool brings precision and simplicity to your assessments.
Use Cases
-
Physiotherapy Clinics: Evaluate foot positioning and postural balance to develop treatment protocols.
-
Podiatry Centers: Diagnose and manage structural foot abnormalities.
-
Orthopedic Clinics: Design custom insoles based on real-time foot pressure patterns.
-
Rehabilitation Facilities: Monitor recovery and improve posture through visual feedback.
-
Sports Injury Centers: Identify imbalances and prevent injury from misalignment.
-
Educational Institutions: Demonstrate anatomy and biomechanics of feet for training and study.
How It Works

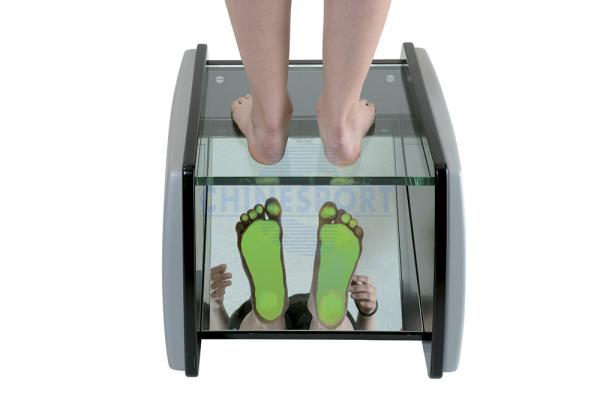

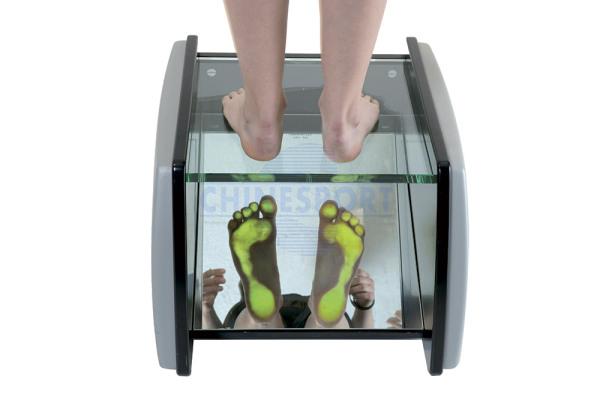

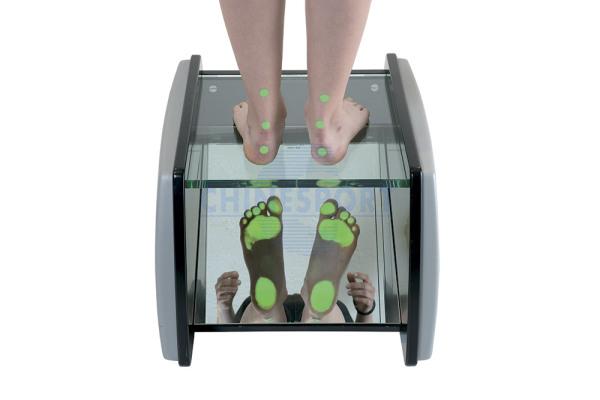

The Chinesport LUX Podoscope works by illuminating the foot from beneath using high-intensity LED lights, casting a detailed view of the pressure points and arches on a reflective surface.
The user stands barefoot on the glass platform, and the clinician observes from below or from the front using the built-in mirrors. The light intensity and clarity help in instantly identifying zones of high pressure and postural misalignments with extreme accuracy.
Key Features
-
LED-illuminated platform for crystal-clear visibility
-
Tempered transparent glass with strong load capacity
-
Mirror system for enhanced visibility from multiple angles
-
Stable, ergonomic design for professional environments
-
Compact and mobile-friendly construction for clinic or on-site assessments
-
User-friendly, no calibration required
Frequently Asked Questions
What is a podoscope used for?
It’s a diagnostic tool used to analyze plantar pressure and foot posture visually using LED light and reflective mirrors.
Is it suitable for home use?
The Podoscope is designed for clinical or professional use. It is lightweight and portable but should be used by trained personnel.
Does it require special setup or calibration?
No special calibration is required—just a stable surface and basic handling.
Is it available across the UAE?
Yes, Health Mart UAE delivers this product across all Emirates with fast dispatch.
What is the delivery timeline?
We typically deliver within 1–2 business days across the UAE.
